IDEA StatiCa Connection

Application IDEA StatiCa Connection can design all types of welded or bolted connections, base plates, footing and anchoring. It provides precise checks,
results of strength, stiffness and buckling analysis of a steel joint. Bolts, welds and concrete blocks are checked according to EC/AISC. Templates for
most-used connections are available as well as wide range of predefined hot rolled and sheet welded members.

ANY TOPOLOGY

No limits on how many connections there are in the joint and how they are put together. A shape is defined by project requirements, not by software capabilities.

ANY LOADING

All forces are analysed. The overall check of the joint takes into account interactions between all the beams and connections. Engineers stay on the safe side all the time.

IN MINUTES

The whole design and check process are kept short enough to be a part of everyday work of structural engineers and fabricators all around the world.

2D Frames & trusses

Footings, anchoring

3D frames & trusses

Key features

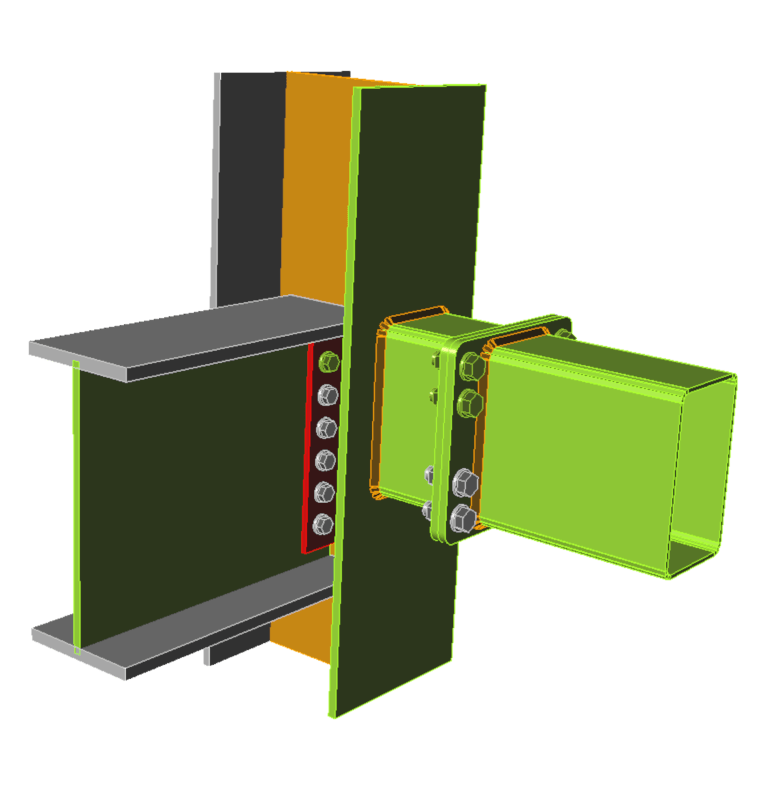

Overall check

Overall check

According to various
national design codes

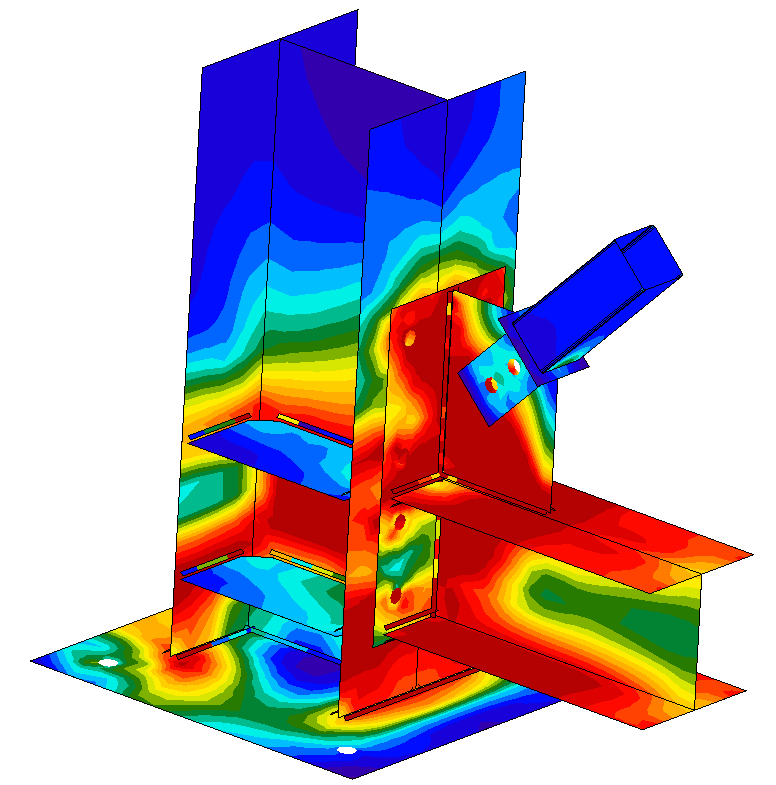

Stress/strain analysis

Stress/strain analysis

FE model of steel joint is
composed automatically

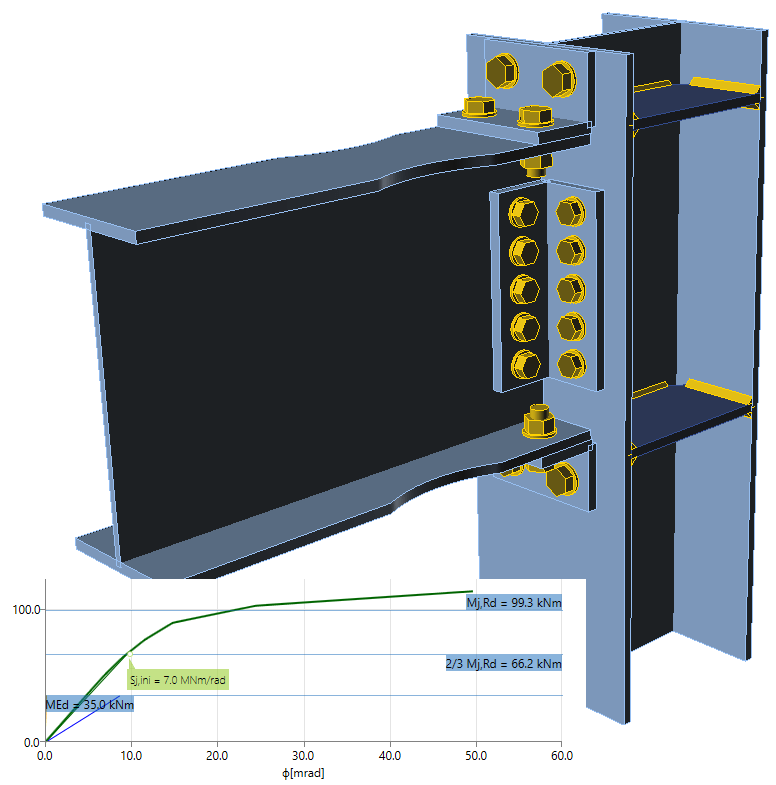

Stiffness analysis

Stiffness analysis

Rotational or transversal
stiffness of any connection

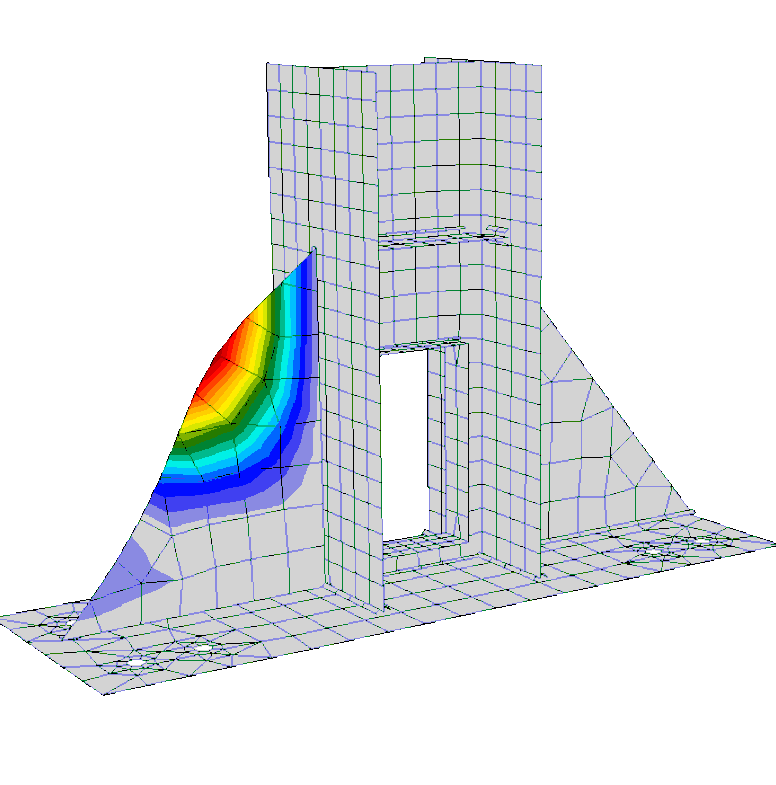

Buckling analysis

Buckling analysis

Local buckling effects
and critical load factors

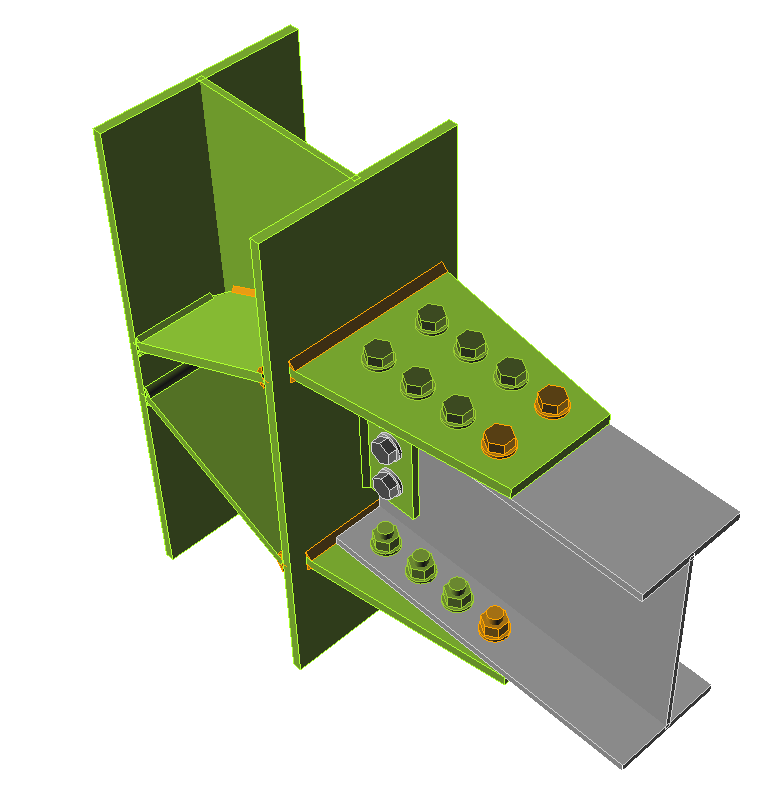

Member capacity design

Member capacity design

A seismic check of non-
dissipative connections

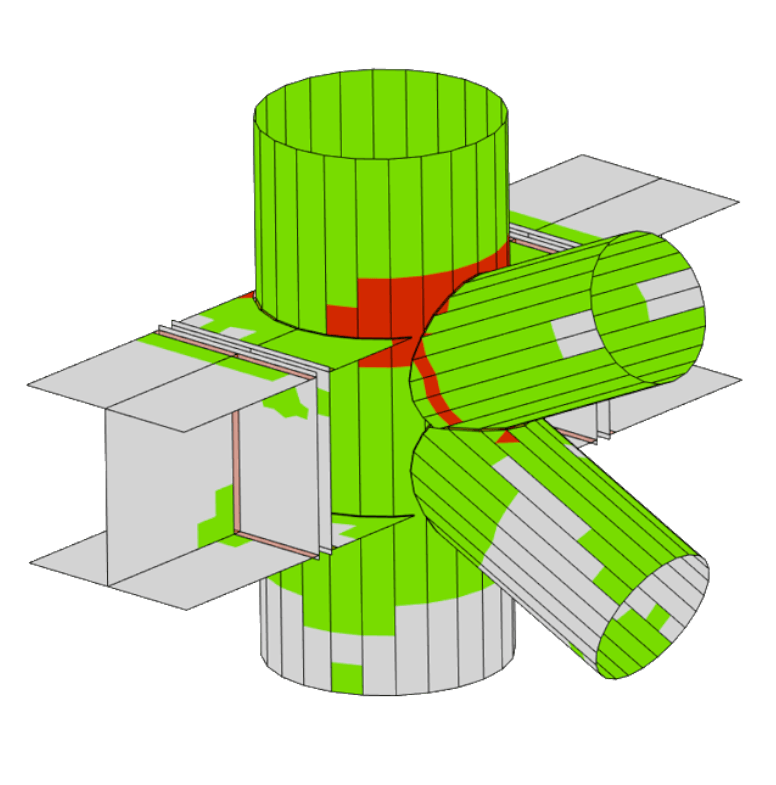

Design joint resistance

Design joint resistance

Maximal possible loads,
reserve in joint capacity
